CMTPL partnered coating centres can Pre-Apply our products on customer supplied fasteners. The coating centres are tooled with state-of-the-art fastener processing equipment to provide quality products and rapid distribution.
We offer a wide range of fastening and assembly related products and processes that exhibit one or more of the following characteristics:
To assist customers in understanding our current product line, the products have been categorized by their function: Inert Locking, Reactive Locking, Advanced Sealing, Masking and Lubricating, and Assemble EZ. In addition to the products listed here, we offer customized formulations for your unique fastening and assembly needs.

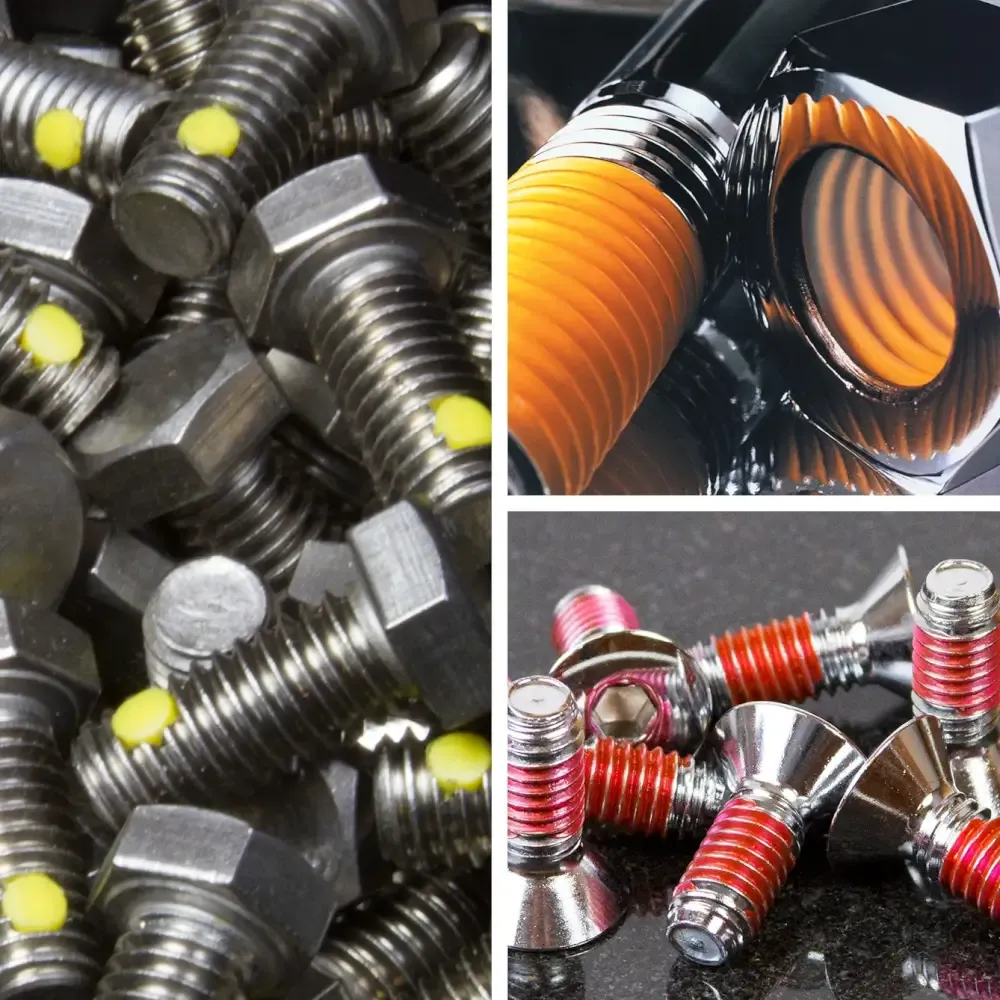

Based on the principle of prevailing torque, inert thread locking processes create fasteners with instant retention and sealing properties along with the added benefit of adjustability and reusability. Inert threadlockers are highly chemical resistant and eliminate the need for costly lock washers, cotter pins, or castellated nuts.
| Product | Pack Size | Product Description | Color | Temp Range °C | Base | Reusability |
|---|---|---|---|---|---|---|
| ND Patch | 1kg/25kg | An inert locking solution that makes fasteners self-locking and self-sealing while leaving them fully adjustable. | Blue / Yellow / Green | -57 to 121 | Nylon | Up to 5 times |
| VC-3 | 30 CC | VC-3 is not an adhesive and it is not anaerobic. It is a special blend of resins to prevent fasteners from loosening through a principle of “friction through viscosity”. | Red | -54 to 74 | Acrylic | Up to 5 times |

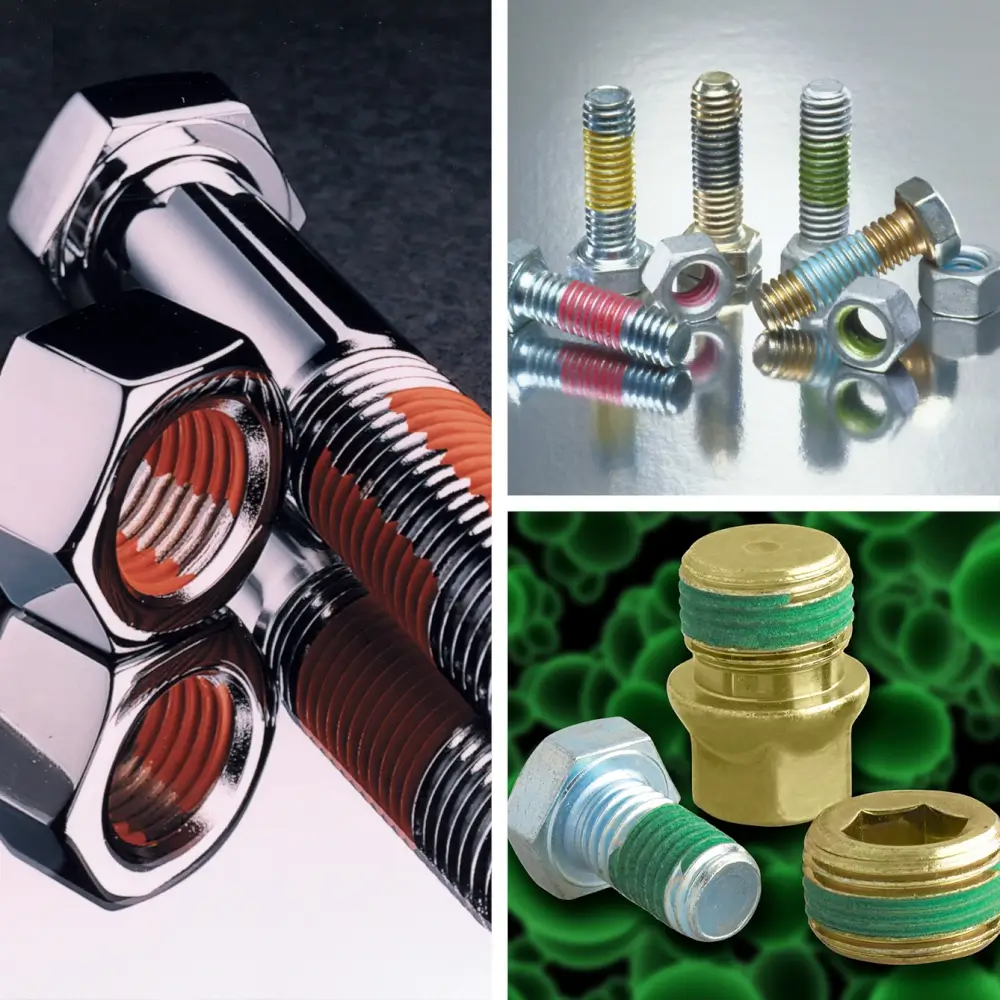

Reactive thread locking processes apply dry to the touch chemical adhesives to internally or externally threaded fasteners. During installation the encapsulated components mix, causing a chemical reaction which locks together and seals the mating parts. In specific formulations an expansion also occurs, filling the gaps between fastener threads.
| Product | Pack Size | Product Description | Color | Temp Range °C | Base | Fixture time (M10 Dry Phosphate) | Full Cure Time |
|---|---|---|---|---|---|---|---|
| 1193S | 1kg/18kg | These are microencapsulated, epoxy based, room temperature curing thread locking adhesives, that when installed initiate a chemical reaction between the encapsulated resin and hardener to lock threaded fasteners in place. | Blue, Yellow, Pink, Green, Red & Bright Orange | -54 to 150 | Epoxy | 4 hrs | 72 hrs |
| 593S | 1kg/18kg | Blue | -54 to 150 | Epoxy | 4 hrs | 72 hrs | |
| AA 1096 | 1kg/18kg | A microencapsulated, room temperature curing acrylic thread locking adhesive that is applied to threaded fasteners of all sizes, materials and finishes. Acrylic threadlockers offer consistent torque values and require no heat or primers for curing. | Pink | -54 to 150 | Acrylic | 2 mins | 72 hrs |

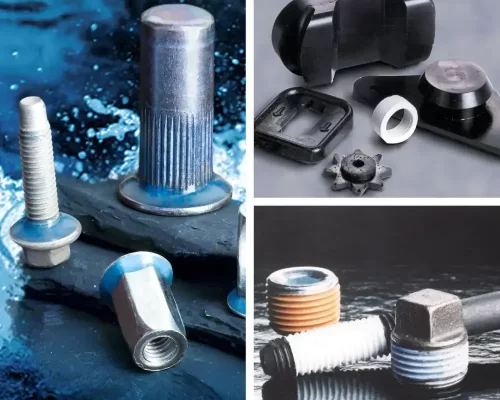

Whether sealing sheet metal, fastener threads, or under the head of fasteners, we have a process that will meet your requirements. ND pre-applied sealants are designed to withstand a wide range of pressures, chemical fluids, and gases.
| Product | Pack Size | Product Description | Color | Temp Range °C | Base |
|---|---|---|---|---|---|
| ST3 L-5 | 1kg/19kg | ST-3 creates a custom-fit elastic gasket around fastener threads which prevents the passage of most fuels and chemicals and helps keep joints tight under severe vibration. | White | -54 to 180 | White |
| ST3 L-6 | 1kg/19kg | Burnt Orange | -54 to 180 | White | |
| ST3 L-8 | 1kg/19kg | White | -54 to 180 | White | |
| ST3 L-13 | 1kg/19kg | White | -54 to 187 | White |

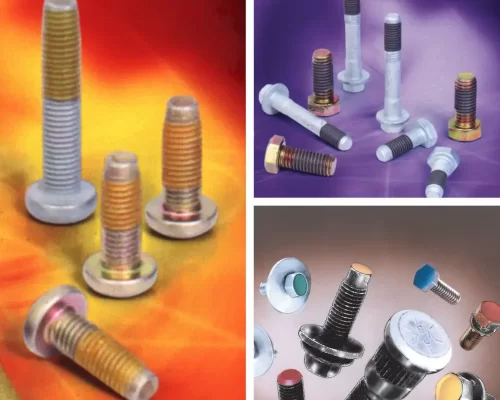

A range of processes developed to prevent fastener seizing, reduce installation torque, limit material adhesion, and more. ND’s masking and lubricating processes help customers decrease assembly and disassembly time which leads to an increase in productivity. Pre-Applied fasteners are ready for use right out of the box with no curing or drying required.
| Product | Pack Size | Product Description | Color | Temp Range °C | Base |
|---|---|---|---|---|---|
| 1293 | 18 kg | A masking and lubricating coating containing a PTFE type material. The coating provides excellent solvent resistance, high temperature resistance, e-coat resistance, weld spatter resistance, resistance to most typically used automotive fluids, and improvement to torque-tension properties. | Purple, Teal, Pale Yellow | -54 to 200 | PTFE |
| SC603 | 18 kg | A pre-applied water-borne, cross linked coating providing excellent solvent resistance and good flexibility, without inducing hydrogen embrittlement. | Black | NA | Polyurethane Resin in water carrier |
